PDFM360mini

Quantity:
  • PDFM360mini

Characteristics:

1. Temperature digital display, direct and convenient

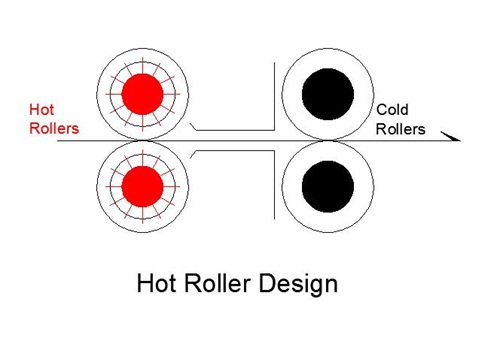

2. Roller inside heater system, efficiency and stable heat for rollers

3. 8-bit micro process control system

4. Key press control panel, easier and more convenient operation

5. Pouch film and roll film laminating, hot and cold laminating functions satisfy various needs of different customers

Both temperature and speed adjustable for more professional use

High quality, low noise, speed adjustable motor.

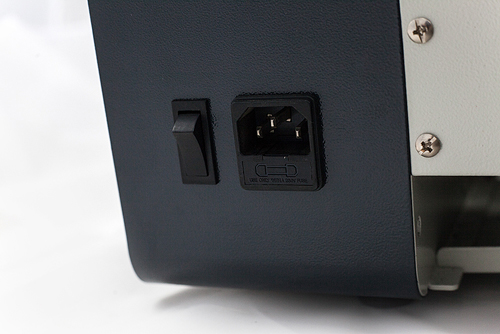

IMG_4979

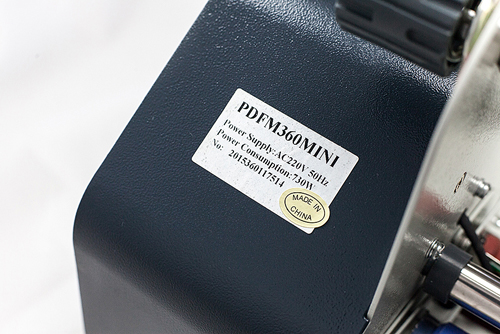

IMG_4980

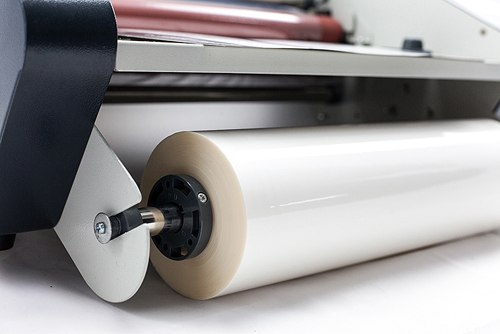

IMG_4985

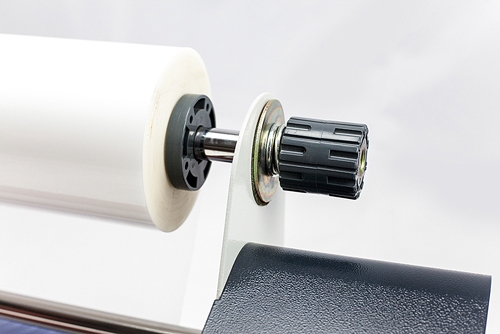

IMG_4992

PDFM360mini

Model: PD360mini PD480mini
Laminating Width: 360mm 480mm
Mounting Distance Between Rollers: 2mm 2mm
Laminating Speed: 0.7m-2.0m/min 0.7m-2.0m/min
Operation Temperature: -150° -150°
Roller : 4 4
Roller Diamter: 30mm 30mm
Heating System(optional):  Infrared heating lamp  Infrared heating lamp
Warm Up Time: 5min 5min
Machine Voltage:     110V/220V 110V/220V
Power Consumption: 730W 930W
Document Reverse Function: Yes Yes
Laminating Thickness: BOPP/PET BOPP/PET
Machine Dimension: 562x318x300mm 682x318x300mm
Machine Net Weight: 15KG 17.5KG
Package:

1pcs/CTN 1pcs/CTN
De-curler System Yes Yes
