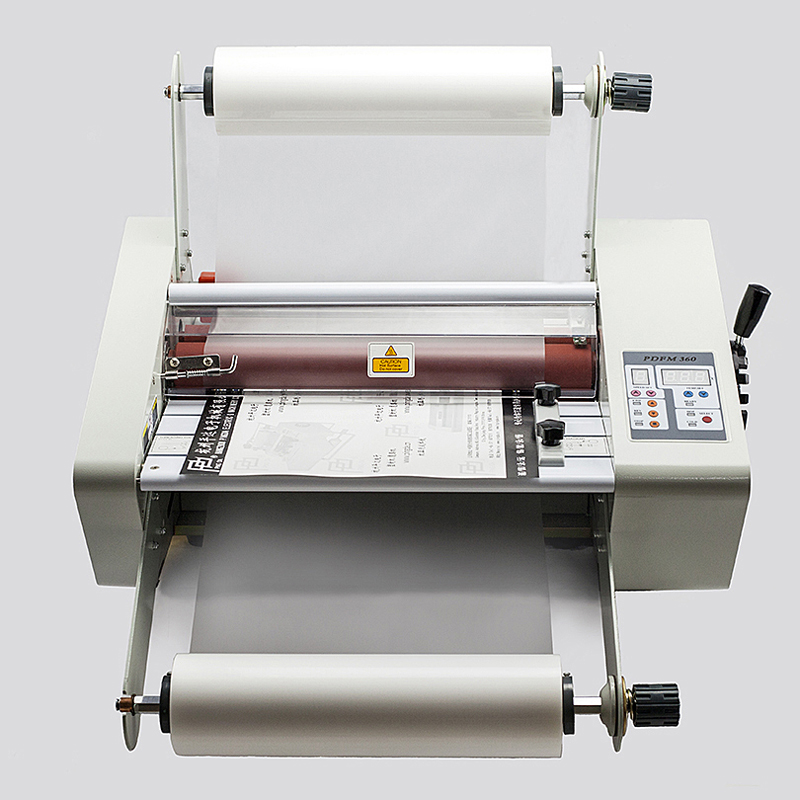

PDFM360H

Quantity:
  • PDFM360H

Characteristics:

1. Temperature digital display, direct and convenient

2. Roller inside heater system, efficiency and stable heat for rollers

3. 8-bit micro process control system

4. Key press control panel, easier and more convenient operation

5. Pouch film and roll film laminating, hot and cold laminating functions satisfy various needs of different customers

Both temperature and speed adjustable for more professional use

High quality, low noise, speed adjustable motor.


IMG_5038

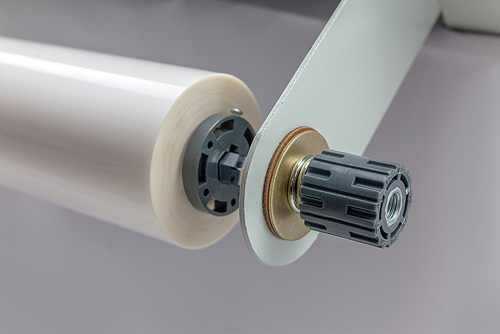

IMG_5041

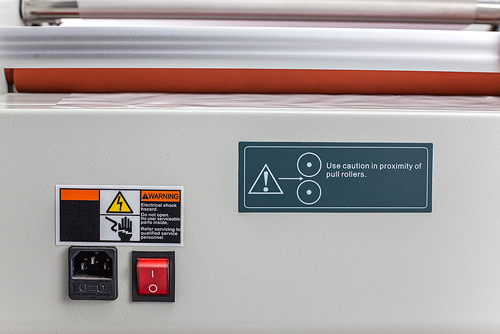

IMG_5059

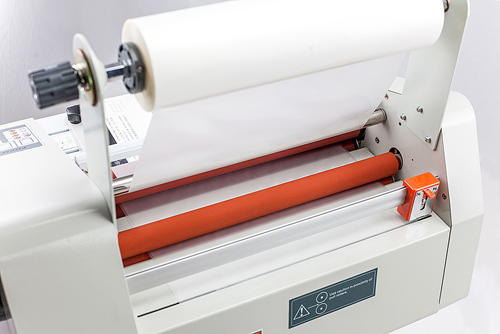

IMG_5062

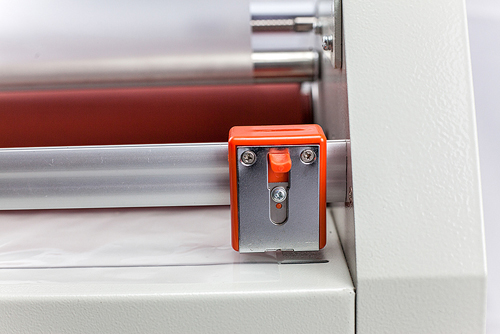

IMG_5065

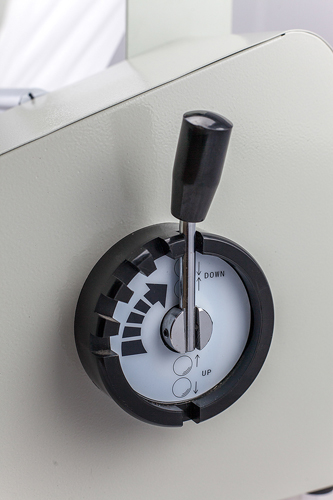

IMG_5046

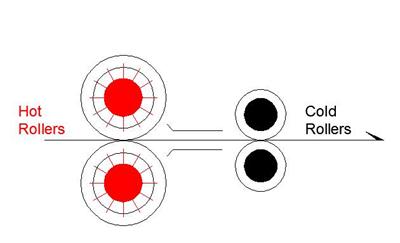

PDFM1100.2

Model: PDFM360H PDFM480H
Laminating Width: 360mm 650mm
Mounting Distance Between Rollers: 3mm 3mm
Laminating Speed: 0.36m-1.9m/min 0.4m-3.3m/min
Operation Temperature: -150° -150°
Roller : 4 4
Roller Diamter: 43.5mm30mm 55mm43.5
Heating System(optional): Infrared heating lamp Infrared heating lamp
Up Time: 8min 8min
Machine Voltage:   110V/220V 110V/220V
Power Consumption: 1000W 1500W
Document Reverse Function: Yes Yes
Laminating Thickness: BOPP/PET BOPP/PET
Machine Dimension: 645x435x270mm 990x435x300mm
Machine Net Weight:

23KG 41KG
Package:

1pcs/CTN 1pcs/CTN
Machine Boady Metal  Metal
De-curler System

customize customize
