PDFM360

Availability:
Quantity:
  • PDFM360

Characteristics:

1. Temperature digital display, direct and convenient

2. Roller inside heater system, efficiency and stable heat for rollers

3. 8-bit micro process control system

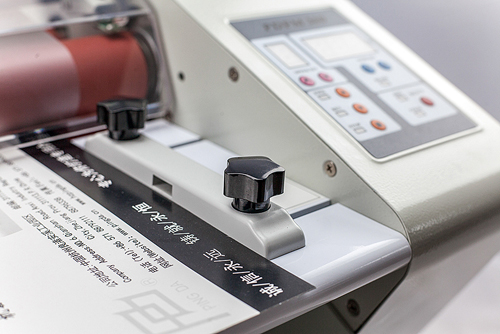

4. Key press control panel, easier and more convenient operation

5. Pouch film and roll film laminating, hot and cold laminating functions satisfy various needs of different customers

Both temperature and speed adjustable for more professional use

High quality, low noise, speed adjustable motor.

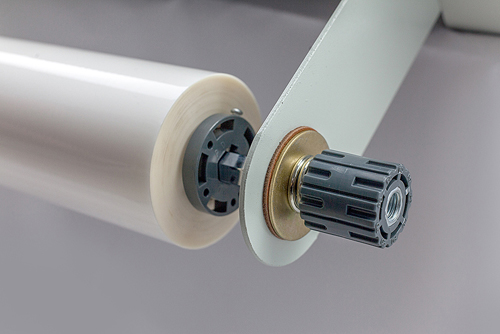

IMG_5041

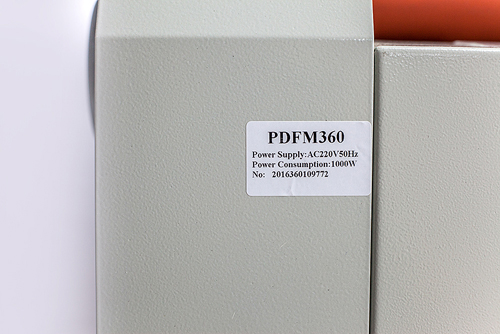

IMG_5056

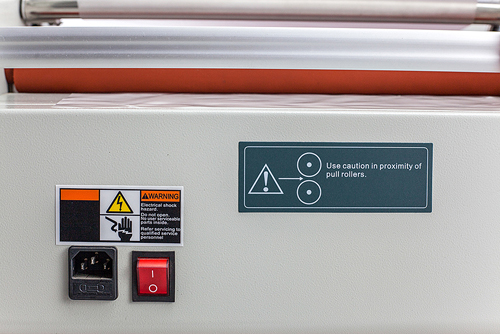

IMG_5059

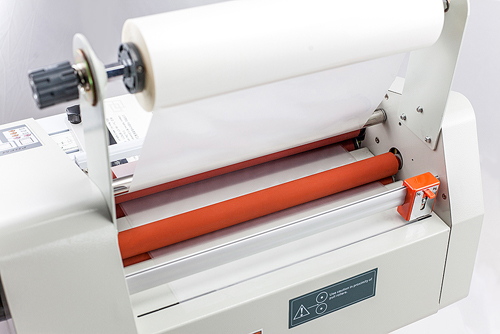

IMG_5062

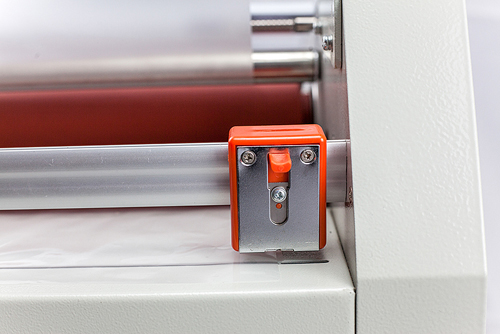

IMG_5065

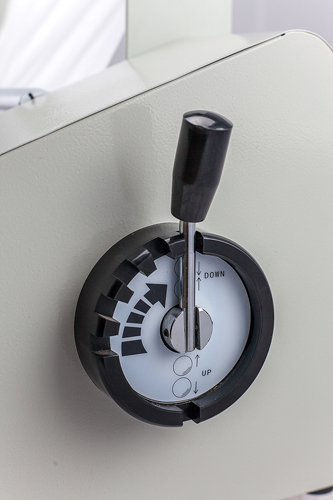

IMG_5046

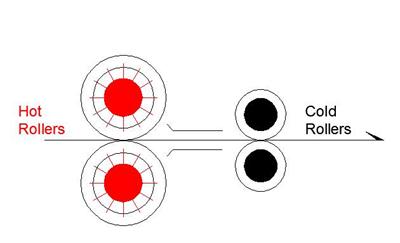

PDFM1100.2

Model: PDFM360 PDFM480
Laminating Width: 360mm 480mm
Mounting Distance Between Rollers: 10mm 10mm
Laminating Speed: 0.36m-1.9m/min 0.36m-1.9m/min
Operation Temperature: -150° -150°
Roller : 4 4
Roller Diamter: 43.5mm和30mm 43.5mm和30mm
Heating System(optional): Heating Roller Internal Heater Heating Roller Internal Heater
Up Time: 8min 8min
Machine Voltage:   110V/220V 110V/220V
Power Consumption: 1000W 1200W
Document Reverse Function: Yes Yes
Laminating Thickness: BOPP/PET BOPP/PET
Machine Dimension: 645x435x270mm 765x435x270mm
Machine Net Weight:

28.6KG 35KG
Package:

1pcs/CTN 1pcs/CTN
Machine Boady

De-curler System

customize customize
