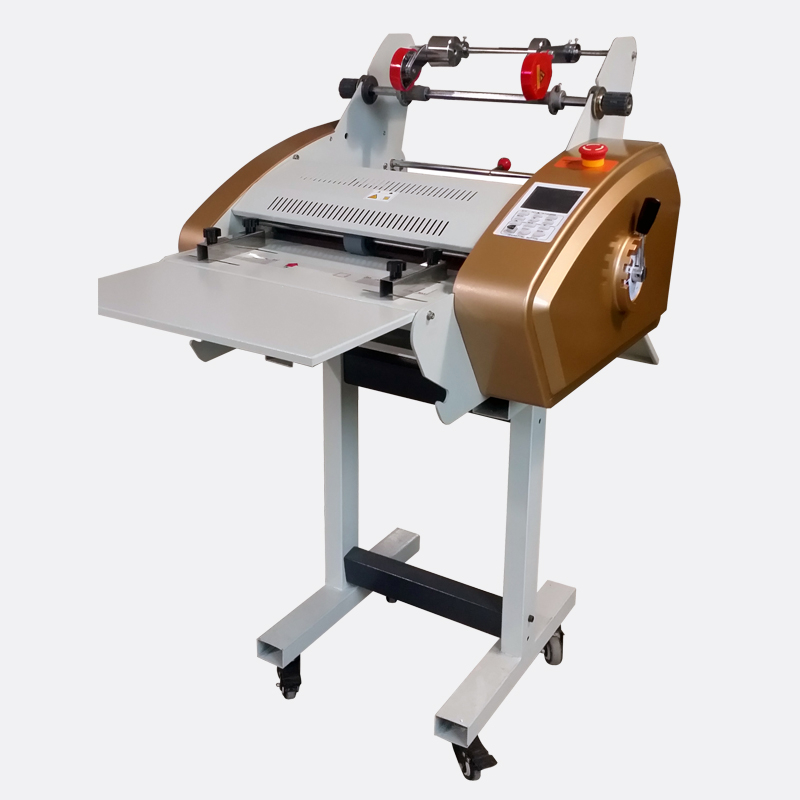

PD360C

Quantity:
  • PD360C

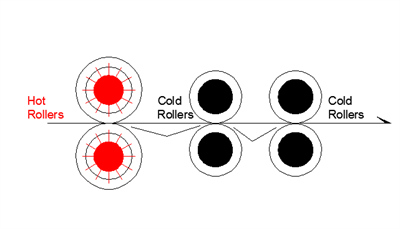

1.     Hot and Cold Lamination

2.     High Quality Imported Silicon Roller

3.     Single/Double Lamination ,Speed Adjustable (1-9), Different materials lamination satisfied with different customers requirements

4.   LCD Display, up and down roller separated temperature display, touch buttons display different temperatures directly

5. Infrared temperature control,reliableand instant temperature measurement,

no attach and no damage to roller

6.     De-curler, adjust it for different thickness papers to ensure flat lamination effect.

7. With hole puncher, punch holes on film before lamination, easy tear off the laminated product; with slitter to cut off unnecessary film during lamination

8.Auto cut film device, after lamination cut off product directly


机身颜色1

20161011_110126

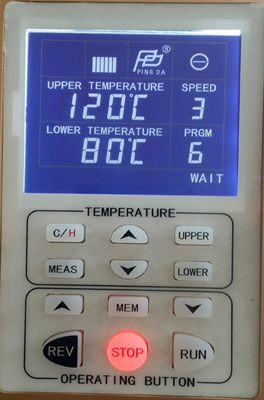

Smart operation system,simple and convenient

20161011_100816

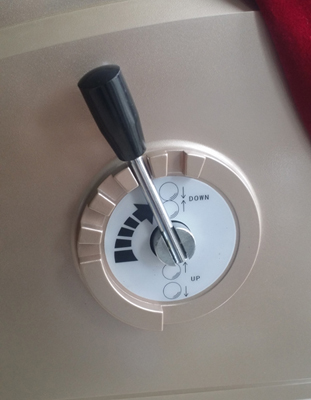

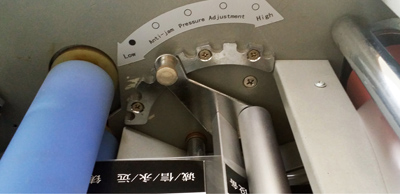

Adjustable Pressure Handle for different paper

20161011_110714
De-curler,adjust if for different thickness papers to ensure flat lamination effect.

20161011_110023

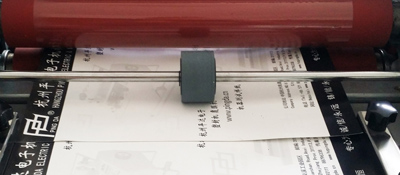

Auto paper feeding structure,practical and convenient.

20161011_110800

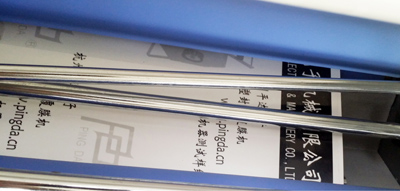

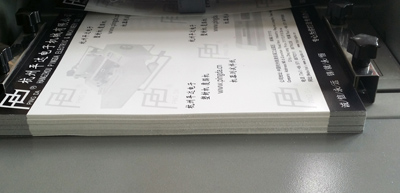

 Operation platform can put 150pcs paper.


20161011_110519
Smart operation system,simple and convenient

PD360C

   Model: PD360C PD480C
Laminating Width: 360mm 480mm
Mounting Distance Between Rollers: 3mm 3mm
Laminating Speed: 0.36m-1.9m/min 0.36m-1.9m/min
Operation Temperature: 0°-150° 0°-150°
Roller : 6 6
Roller Diamter: 55mm和45mm 55mm和45mm
Heating System(optional): Infrared heating lamp Infrared heating lamp
Warm Up Time: 8min 8min
Machine Voltage:

110V/220V 110V/220V
Power Consumption: 1300W 1500W
Document Reverse Function: Yes Yes
Laminating Thickness: BOPP/PET BOPP/PET
Machine Dimension: 630x780x1140mm 750x780x1140mm
Machine Net Weight:

60KG 66KG
Package:

1pcs/CTN 1pcs/CTN
 Machine Boady Metal Metal
De-curler System Yes Yes
Automatically Feeding PaPer:
S
Yes Yes
Automatically cutting PaPer: Yes Yes
