PD360B

Quantity:
  • PD360B

1. Hot and Cold Lamination

2.High Quality Imported Silicon Roller

3.Single/Double Lamination ,Speed Adjustable (1-9), Different materials lamination satisfied with different customers requirements

4. LCD Display, up and down roller separated temperature display, touch buttons display different temperatures directly

5.Infrared temperature control, reliable and instant temperature measurement , no attach and no damage to roller

6.De-curler, adjust it for different thickness papers to ensure flat lamination effect.

7. With hole puncher, punch holes on film before lamination, easy tear off the laminated product; with slitter to cut off unnecessary film during lamination


机身颜色1

20161011_110126

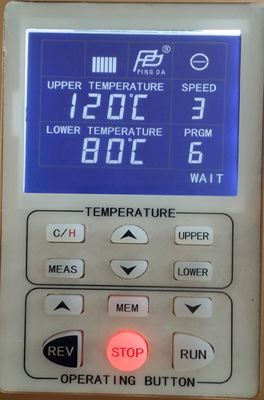

Smart operation system,simple and convenient

20161011_100816

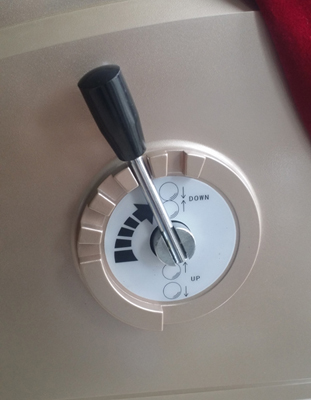

Adjustable Pressure Handle for different paper

20161011_110714
De-curler,adjust if for different thickness papers to ensure flat lamination effect.

20161011_110023

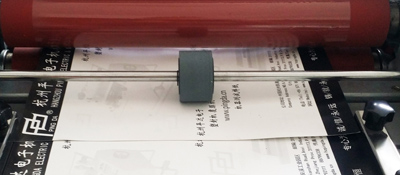

Auto paper feeding structure,practical and convenient.


20161011_110800

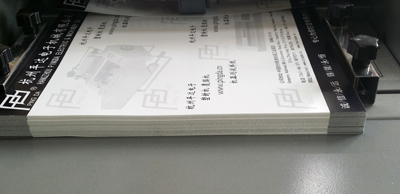

 Operation platform can put 150pcs paper.





PD360B.2

  Model: PD360B PD480B
Laminating Width: 360mm 480mm
Mounting Distance Between Rollers: 3mm 3mm
Laminating Speed: 0.36m-1.9m/min 0.36m-1.9m/min
Operation Temperature: 0°-150° 0°-150°
Roller : 4 4
Roller Diamter: 55mm和45mm 55mm和45mm
Heating System(optional): Infrared heating lamp Infrared heating lamp
Warm Up Time: 8min 8min
Machine Voltage:

110V/220V 110V/220V
Power Consumption: 1300W 1500W
Document Reverse Function: Yes Yes
Laminating Thickness: BOPP/PET BOPP/PET
Machine Dimension: 630x780x1140mm 750x780x1140mm
Machine Net Weight:

52KG 57KG
Package:

1pcs/CTN 1pcs/CTN
 Machine Body:

Metal Metal
De-curler System: Yes Yes
Automatically Feeding Paper Yes Yes
