PD360A
Functions

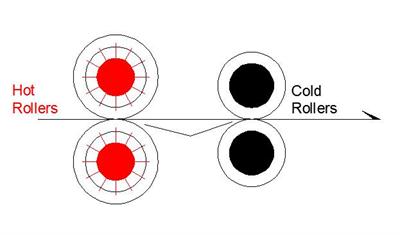

Hot and Cold Lamination
High Quality Imported Silicon Roller
Single/Double Lamination ,Speed Adjustable (1-9), Different materials lamination satisfied with different customers requirements

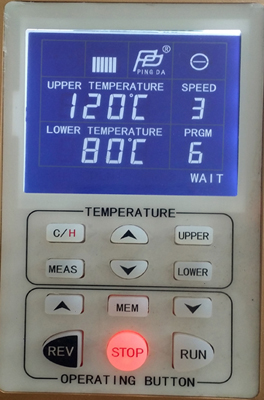

LCD Display, up and down roller separated temperature display, touch buttons display different temperatures directly
5.Infrared temperature control, reliable and instant temperature measurement , no attach and no damage to roller
6.De-curler, adjust it for different thickness papers to ensure flat lamination effect.
7. With hole puncher, punch holes on film before lamination, easy tear off the laminated product; with slitter to cut off unnecessary film during lamination
Smart operation system,simple and convenient
De-curler,adjust if for different thickness papers to ensure flat lamination effect.
Model: | PD360A | PD480A | PD650A |
Laminating Width: | 360mm | 480mm | 650mm |
Mounting Distance Between Rollers: | 10mm | 10mm | 10mm |
Laminating Speed: | 0.36m-1.9m/min | 0.36m-1.9m/min | 0.4m-3.3m/min |
Operation Temperature: | 0°-150° | 0°-150° | 0°-150° |
Roller : | 4 | 4 | 4 |
Roller Diamter: | 55mm和45mm | 55mm和45mm | 55mm和45 |
Heating System(optional): | Infrared heating lamp | Infrared heating lamp | Infrared heating lamp |
Warm Up Time: | 8min | 8min | 8min |
Machine Voltage: | 110V/220V | 110V/220V | 110V/220V |
Power Consumption: | 1000W | 1200W | 1600W |
Document Reverse Function: | Yes | Yes | Yes |
Laminating Thickness: | BOPP/PET | BOPP/PET | BOPP/PET |
Machine Dimension: | 630x780x1140mm | 750x780x1140mm | 920x780x1140mm |
Machine Net Weight: | 50.5KG | 55KG | 87KG |
Package: | 1pcs/CTN | 1pcs/CTN | 1pcs/CTN |
Machine Boady | Metal | Metal | Metal |
De-curler System | Yes | Yes | Yes |
