PD336R

Availability:
Quantity:
  • PD336R

Characteristics:

1. 12-bit Microprocess control system
2. Touch style operation keys, fashionable, convenient and energy-saved.
3. The laminator has characteristics of fast warm up, easy operation and visible temperature indication.
4. The laminator set with several safe-protection measurements to increase the reliability.
5. The silicone roller diameter for 30mm, the bigger roller diameter the better lamination quality.
6. With high quality AC speed variable motor, machine run stable and have longer the lifespan.
7.  Install heat isolation structure inside, machine surface temperature will be lower than 60℃ even when operate with highest setting temperature
8.  Auto Sleep Function: if not operate machine during 2hrs, then machine will automatically get into sleep mode, this will save energy and cause less damage to spare parts, make machine lifespan longer.
9.  Machine can laminate 350mic film with carrier, high quality and perfect protection for lamination with carrier.

PC336L 2




 Model: PD336R
Laminating Width: 330mm
Mounting Distance Between Rollers: 1.5mm
Laminating Speed: 0.5m-2.0m/min
Operation Temperature: 80°-180°

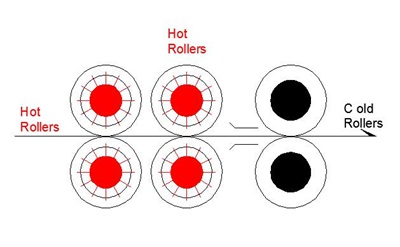

Roller : 6
Roller Diamter: 30mm
Heating System: Heating Roller Internal Heater  4 Heated Rollers
Warm Up Time: 5mins
Power Supplies(optional):
110V/60Hz , 220V/50Hz
Power Consumption: 1050W
Document Reverse Function: Yes
Laminating Thickness: 80mic-350mic
Laminating Dimension: 540x270x130mm
Machine Net Weight:
15.4KG
Package:

2pcs/CTN
