Functions

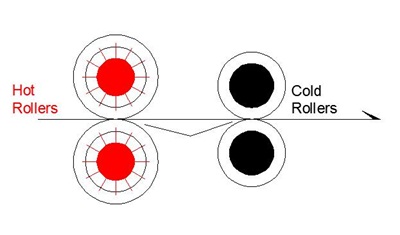

Hot and Cold Lamination
High Quality imported silicon rollers, and heavy duty design rollers , suitable for different types and various thickness films, such as hot lamination film and acrylic plastic film, all can get great lamination result
Single/Double Lamination ,Speed Adjustable (1-9), Different materials lamination satisfied with different customers requirements
LCD Display, up and down roller separated temperature display, touch buttons display different temperatures directly
Infrared temperature control, reliable and instant temperature measurement , no attach and no damage to roller
Rewinding : during the lamination, can rewind the protection layer from film directly, easy and convenient operation.
Model | HL-880Q | HL-1100Q |
Laminating Width: | 850mm | 1070mm |
Film Type | Crystal Film tempered film gold diamond film | |
Laminating Speed: | 0.8—3m | |
Operation Temperature: | 0—150° | |
Warm Up Time: | 30mins | |
Speed | 9 settings | |
Core Size | 3 in 1 | |
Roller: | 4 | |
Roller Diameter | 105mm and 75mm | |
Power Supplies(Optional) | 110V/220-240V | |
Power Consumption: | 2300W | 2700W |
Machine Dimension: | 1150X670X1130mm | 1300x670x1130mm |
Package: | 1pc/CTN |
