FGK650

Quantity:
  • FGK650

Characteristics:

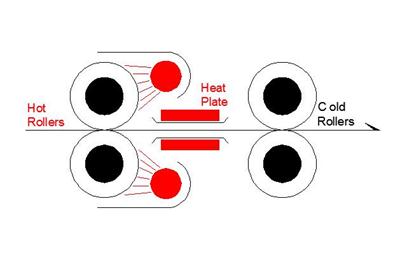

1. The heating method is quartz tube heating and mica film heating can be carried out simultaneously or separately. Two heating systems are adopted, and the heating is more uniform.

2. Various temperature, cold laminating function for different laminating needs.

3. Both temperature and speed adjustable, works great for different laminating material, specially thick materials

4.  Low noise DC motor, more stable operation, longer service life

5. Special heavy duty silicon rollers, good for wide laminating material.

6. Over-heat protection system, safer to machine and user.


FGK650

Model:FGK650
Laminating Width:650mm
Mounting Distance Between Rollers:2mm
Laminating Speed:0.5m-3.5m/min
Operation Temperature:100°-180°
Roller :4
Roller Diamter:14.9mm
Heating System(optional):
Infrared heating lamp/mica sheet heater
Warm Up Time:20min
Machine Voltage:   110V/220V
Power Consumption:1520W
Document Reverse Function:Yes
Laminating Thickness:PET
PET/Crystal film
Machine Dimension:859x253x135mm
Machine Net Weight:

27KG
Package:

1pcs/CTN
