FGK320

Availability:
Quantity:
Inquire Add to Basket

  • FGK320

Characteristics:

Various temperature, cold laminating function for different laminating needs.

High quality, low noise, stable motor.

Recoverable over-heat protection system, safer to machine and user

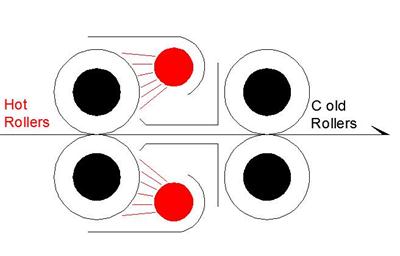

FGK-120.2

 Model: FGK160 FGK220 FGK260 FGK320 FGK390 FGK450
Laminating Width: 160mm 220mm 260mm 320mm 390mm 450mm
Mounting Distance Between Rollers: 2mm 2mm 2mm 2mm 2mm 2mm
Laminating Speed: 0.5m/min 0.5m/min 0.5m/min 0.5m/min 0.5m/min 0.5m/min
Operation Temperature: 100°-160° 100°-160° 100°-160° 100°-180° 100°-180° 100°-180°
Roller : 4 4 4 4 4 4
Roller Diamter: 25mm 25mm 25mm 25mm 25mm 25mm
Heating System(optional): Infrared heating lamp Infrared heating lamp Infrared heating lamp Infrared heating lamp Infrared heating lamp Infrared heating lamp
Warm Up Time: 4mins 4mins 4mins 4mins 4mins 4mins
Machine Voltage:   110V/220V 110V/220V 110V/220V 110V/220V 110V/220V 110V/220V
Power Consumption: 320W 420W 520W 620W 720W 820W
Document Reverse Function: Yes Yes Yes Yes Yes Yes
Laminating Thickness: 80mic-200mic 80mic-200mic 80mic-200mic 80mic-250mic 80mic-250mic 80mic-250mic
Machine Dimension: 340x200x110mm 400x200x110mm 440x200x110mm 500x200x110mm 570x200x110mm 630x200x110mm
Machine Net Weight:
 		 6.2KG 6.2KG 6.8KG      7.7KG 8.5KG      11KG
Package:
 		 2pcs/CTN 2pcs/CTN 2pcs/CTN 2pcs/CTN 2pcs/CTN 2pcs/CTN
